We laser cut both, large and small plates.

Our two metal sheet laser cutting plants have a working area up to 4000x2000 mm and they are able to work slabs of any size, shape or thickness with speed and precision. We also cut square and round tubes with diameters up to 300 mm.

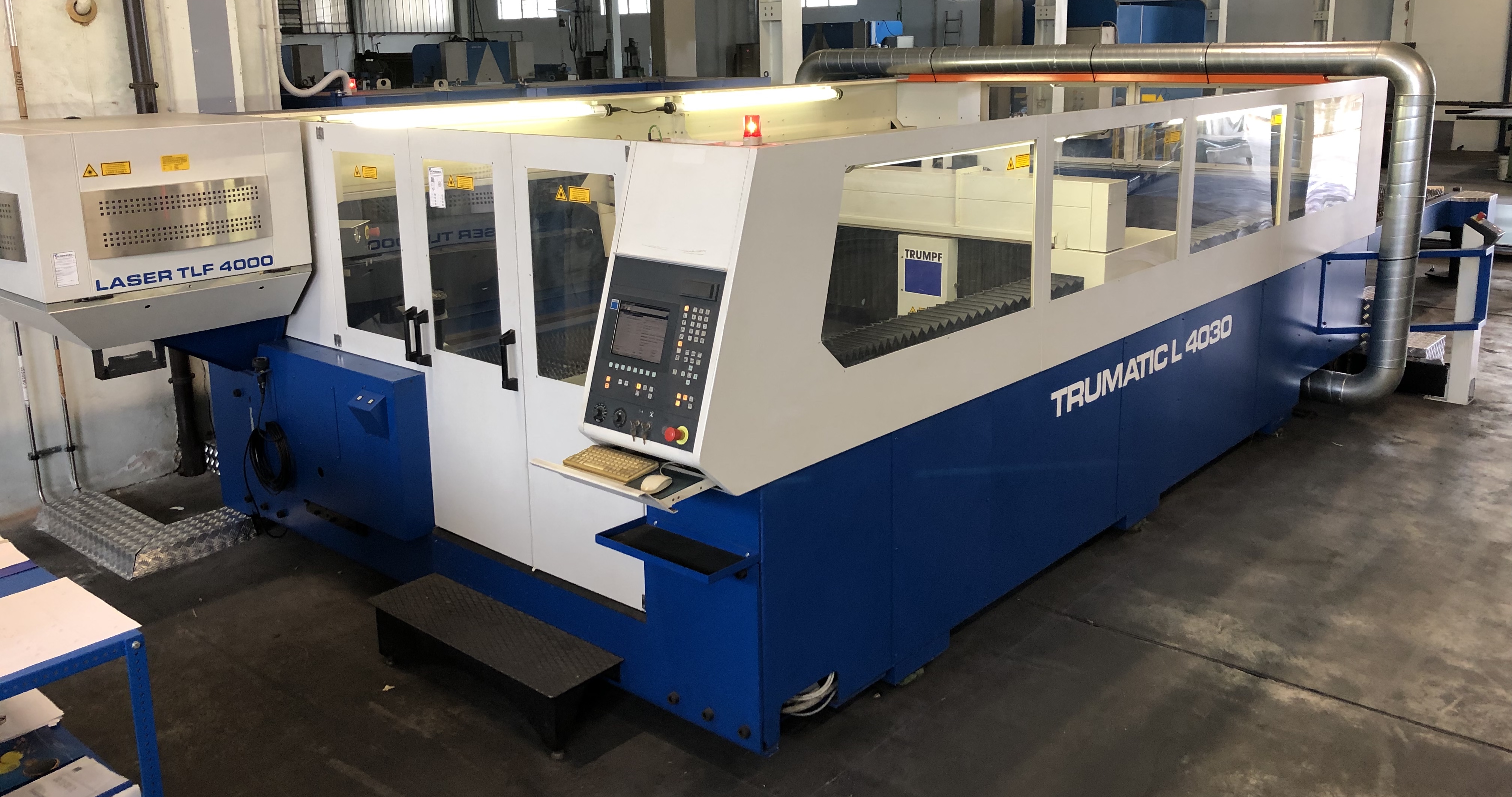

TRUMPF TRUMATIC L4030 laser cutting machining center - 4000 Watts, with double loading table 4000 x 2000, and ROTOLAS tube cutting spindle.

Technical data:

• Power 4000 Watts
• Working range 4000 x 2000 mm
• Max. Thickness Iron Steel 20 mm
• Max. Thickness Steel Galvanized iron 5 mm
• Max. Thickness Stainless steel 10 mm
• Max. Thickness Aluminum 6 mm
• Tubular cutting up to 300 mm diameter

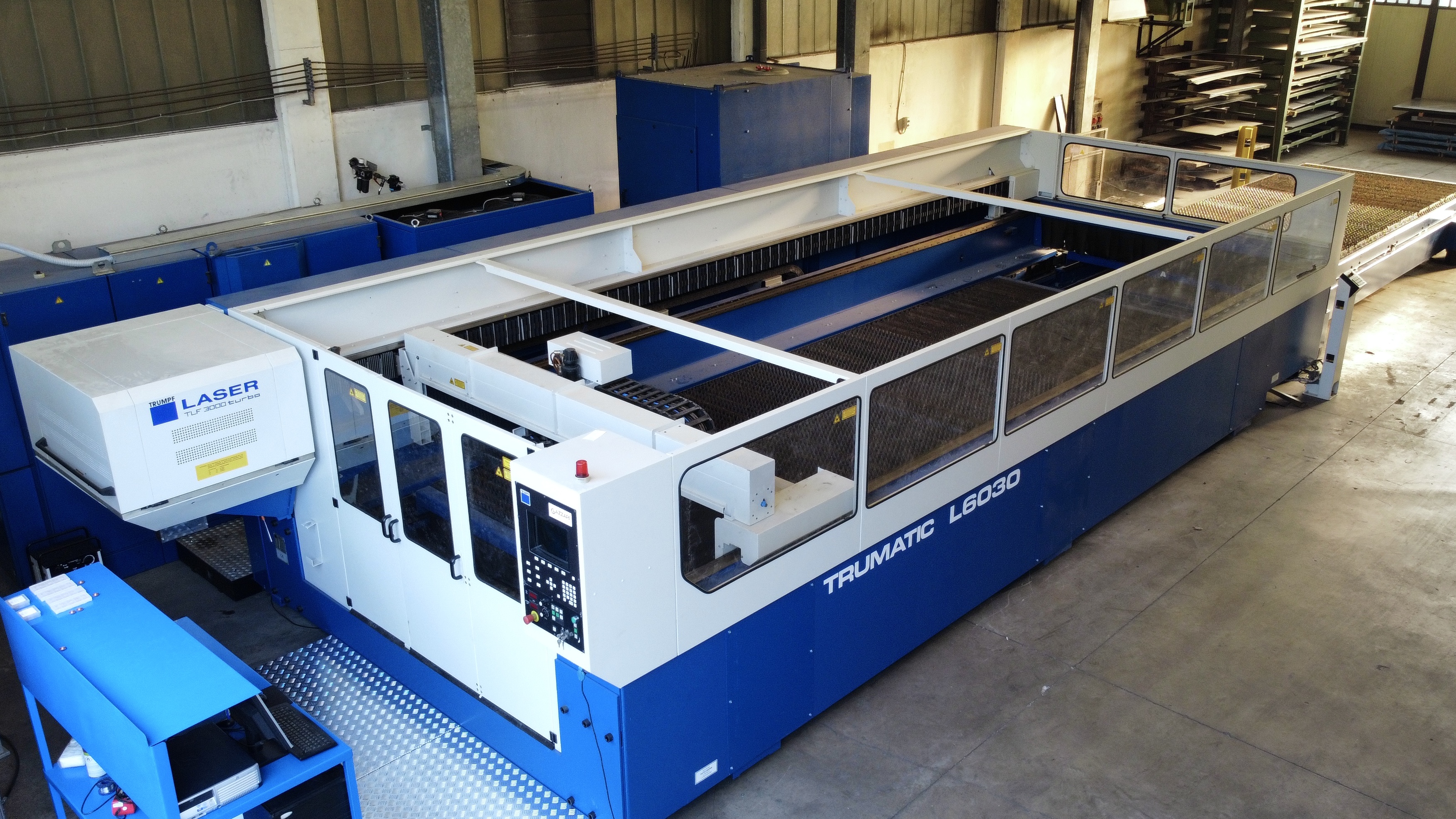

TRUMPF TRUMATIC L6030 laser cutting machining center - 3000 watts, with double loading table 4000 x 2000.

Technical data:

• Power 3000 Watts
• Working range 4000 x 2000 mm
• Max. Thickness Iron Steel 20 mm
• Max. Thickness Steel Galvanized iron 5 mm
• Max. Thickness Stainless steel 8 mm
• Max. Thickness Aluminum 5 mm
